BTTaskNode를 상속받은 BTTask_FindPatrolPos 노드 생성

컴파일 에러가 발생하는데, 행동 트리 모듈을 추가하려면 AI에 관련된 모듈을 추가해줘야함.

"NavigationSystem", "AIModule", "GameplayTasks"

// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "BehaviorTree/BTTaskNode.h"
#include "BTTask_FindPatrolPos.generated.h"

/**
 *
 */
UCLASS()
class ARENABATTLE_API UBTTask_FindPatrolPos : public UBTTaskNode
{
	GENERATED_BODY()

public:
	UBTTask_FindPatrolPos();

	virtual EBTNodeResult::Type ExecuteTask(UBehaviorTreeComponent& OwnerComp, uint8* NodeMemory) override;

};

BTTask_FindPatrolPos.h

// Fill out your copyright notice in the Description page of Project Settings.


#include "AI/BTTask_FindPatrolPos.h"
#include "ABAI.h"
#include "AIController.h"
#include "NavigationSystem.h"
#include "BehaviorTree/BlackboardComponent.h"
#include "Interface/ABCharacterAIInterface.h"

UBTTask_FindPatrolPos::UBTTask_FindPatrolPos()
{
}

EBTNodeResult::Type UBTTask_FindPatrolPos::ExecuteTask(UBehaviorTreeComponent& OwnerComp, uint8* NodeMemory)
{
	EBTNodeResult::Type Result = Super::ExecuteTask(OwnerComp, NodeMemory);

	APawn* ControllingPawn = OwnerComp.GetAIOwner()->GetPawn();
	if (nullptr == ControllingPawn)
	{
		return EBTNodeResult::Failed;
	}

	UNavigationSystemV1* NavSystem = UNavigationSystemV1::GetNavigationSystem(ControllingPawn->GetWorld());
	if (nullptr == NavSystem)
	{
		return EBTNodeResult::Failed;
	}

	IABCharacterAIInterface* AIPawn = Cast<IABCharacterAIInterface>(ControllingPawn);
	if (nullptr == AIPawn)
	{
		return EBTNodeResult::Failed;
	}

	FVector Origin = OwnerComp.GetBlackboardComponent()->GetValueAsVector(BBKEY_HOMEPOS);
	float PatrolRadius = AIPawn->GetAIPatrolRadius();
	FNavLocation NextPatrolPos;

	if (NavSystem->GetRandomPointInNavigableRadius(Origin, PatrolRadius, NextPatrolPos))
	{
		OwnerComp.GetBlackboardComponent()->SetValueAsVector(BBKEY_PATROLPOS, NextPatrolPos.Location);
		return EBTNodeResult::Succeeded;
	}

	return EBTNodeResult::Failed;
}

BTTask_FindPatrolPos.cpp

ABCharacterAIInterface 인터페이스 생성

// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "UObject/Interface.h"
#include "ABCharacterAIInterface.generated.h"

// This class does not need to be modified.
UINTERFACE(MinimalAPI)
class UABCharacterAIInterface : public UInterface
{
	GENERATED_BODY()
};

DECLARE_DELEGATE(FAICharacterAttackFinished);
/**
 *
 */
class ARENABATTLE_API IABCharacterAIInterface
{
	GENERATED_BODY()

	// Add interface functions to this class. This is the class that will be inherited to implement this interface.
public:
	virtual float GetAIPatrolRadius() = 0;
	virtual float GetAIDetectRange() = 0;
	virtual float GetAIAttackRange() = 0;
	virtual float GetAITurnSpeed() = 0;

	virtual void SetAIAttackDelegate(const FAICharacterAttackFinished& InOnAttackFinished) = 0;
	virtual void AttackByAI() = 0;
};

ABCharacterAIInterface.h

// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Character/ABCharacterBase.h"
#include "Engine/StreamableManager.h"
#include "Interface/ABCharacterAIInterface.h"
#include "ABCharacterNonPlayer.generated.h"

/**
 *
 */
UCLASS(config=ArenaBattle)
class ARENABATTLE_API AABCharacterNonPlayer : public AABCharacterBase, public IABCharacterAIInterface
{
	GENERATED_BODY()

public:
	AABCharacterNonPlayer();

protected:
	virtual void PostInitializeComponents() override;

protected:
	void SetDead() override;
	void NPCMeshLoadCompleted();

	UPROPERTY(config)
	TArray<FSoftObjectPath> NPCMeshes;

	TSharedPtr<FStreamableHandle> NPCMeshHandle;

// AI Section
protected:
	virtual float GetAIPatrolRadius() override;
	virtual float GetAIDetectRange() override;
	virtual float GetAIAttackRange() override;
	virtual float GetAITurnSpeed() override;

	virtual void SetAIAttackDelegate(const FAICharacterAttackFinished& InOnAttackFinished) override;
	virtual void AttackByAI() override;

	FAICharacterAttackFinished OnAttackFinished;

	virtual void NotifyComboActionEnd() override;
};

ABCharacterNonPlayer.h

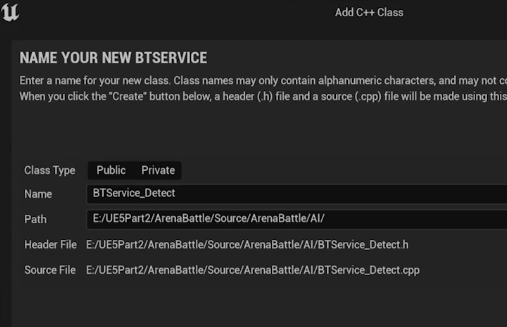

BTService를 상속받은 BTService_Detect 노드 생성

// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "BehaviorTree/BTService.h"
#include "BTService_Detect.generated.h"

/**
 *
 */
UCLASS()
class ARENABATTLE_API UBTService_Detect : public UBTService
{
	GENERATED_BODY()

public:
	UBTService_Detect();

protected:
	virtual void TickNode(UBehaviorTreeComponent& OwnerComp, uint8* NodeMemory, float DeltaSeconds) override;

};

BTService_Detect.h

// Fill out your copyright notice in the Description page of Project Settings.


#include "AI/BTService_Detect.h"
#include "ABAI.h"
#include "AIController.h"
#include "Interface/ABCharacterAIInterface.h"
#include "BehaviorTree/BlackboardComponent.h"
#include "Physics/ABCollision.h"
#include "DrawDebugHelpers.h"
#include "Engine/OverlapResult.h"

UBTService_Detect::UBTService_Detect()
{
	NodeName = TEXT("Detect");
	Interval = 1.0f;
}

void UBTService_Detect::TickNode(UBehaviorTreeComponent& OwnerComp, uint8* NodeMemory, float DeltaSeconds)
{
	Super::TickNode(OwnerComp, NodeMemory, DeltaSeconds);

	APawn* ControllingPawn = OwnerComp.GetAIOwner()->GetPawn();
	if (nullptr == ControllingPawn)
	{
		return;
	}

	FVector Center = ControllingPawn->GetActorLocation();
	UWorld* World = ControllingPawn->GetWorld();
	if (nullptr == World)
	{
		return;
	}

	IABCharacterAIInterface* AIPawn = Cast<IABCharacterAIInterface>(ControllingPawn);
	if (nullptr == AIPawn)
	{
		return;
	}

	float DetectRadius = AIPawn->GetAIDetectRange();

	TArray<FOverlapResult> OverlapResults;
	FCollisionQueryParams CollisionQueryParam(SCENE_QUERY_STAT(Detect), false, ControllingPawn);
	bool bResult = World->OverlapMultiByChannel(
		OverlapResults,
		Center,
		FQuat::Identity,
		CCHANNEL_ABACTION,
		FCollisionShape::MakeSphere(DetectRadius),
		CollisionQueryParam
	);

	if (bResult)
	{
		for (auto const& OverlapResult : OverlapResults)
		{
			APawn* Pawn = Cast<APawn>(OverlapResult.GetActor());
			if (Pawn && Pawn->GetController()->IsPlayerController())
			{
				OwnerComp.GetBlackboardComponent()->SetValueAsObject(BBKEY_TARGET, Pawn);
				DrawDebugSphere(World, Center, DetectRadius, 16, FColor::Green, false, 0.2f);

				DrawDebugPoint(World, Pawn->GetActorLocation(), 10.0f, FColor::Green, false, 0.2f);
				DrawDebugLine(World, ControllingPawn->GetActorLocation(), Pawn->GetActorLocation(), FColor::Green, false, 0.27f);
				return;
			}
		}
	}

	OwnerComp.GetBlackboardComponent()->SetValueAsObject(BBKEY_TARGET, nullptr);
	DrawDebugSphere(World, Center, DetectRadius, 16, FColor::Red, false, 0.2f);
}

BTService_Detect.cpp

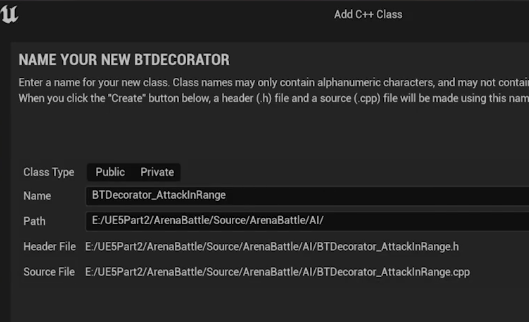

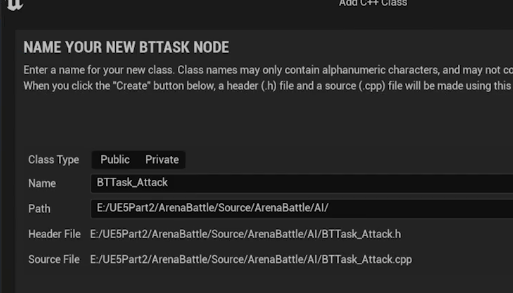

BTDecorator를 상속받은 BTDecorator_AttackInRange 노드와

BTTask를 상속받은 BTTask_Attack 노드 생성

// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "BehaviorTree/BTDecorator.h"
#include "BTDecorator_AttackInRange.generated.h"

/**
 *
 */
UCLASS()
class ARENABATTLE_API UBTDecorator_AttackInRange : public UBTDecorator
{
	GENERATED_BODY()

public:
	UBTDecorator_AttackInRange();

protected:
	virtual bool CalculateRawConditionValue(UBehaviorTreeComponent& OwnerComp, uint8* NodeMemory) const override;
};

BTDecorator_AttackInRange.h

// Fill out your copyright notice in the Description page of Project Settings.


#include "AI/BTDecorator_AttackInRange.h"
#include "ABAI.h"
#include "AIController.h"
#include "BehaviorTree/BlackboardComponent.h"
#include "Interface/ABCharacterAIInterface.h"

UBTDecorator_AttackInRange::UBTDecorator_AttackInRange()
{
	NodeName = TEXT("CanAttack");
}

bool UBTDecorator_AttackInRange::CalculateRawConditionValue(UBehaviorTreeComponent& OwnerComp, uint8* NodeMemory) const
{
	bool bResult = Super::CalculateRawConditionValue(OwnerComp, NodeMemory);

	APawn* ControllingPawn = OwnerComp.GetAIOwner()->GetPawn();
	if (nullptr == ControllingPawn)
	{
		return false;
	}

	IABCharacterAIInterface* AIPawn = Cast<IABCharacterAIInterface>(ControllingPawn);
	if (nullptr == AIPawn)
	{
		return false;
	}

	APawn* Target = Cast<APawn>(OwnerComp.GetBlackboardComponent()->GetValueAsObject(BBKEY_TARGET));
	if (nullptr == Target)
	{
		return false;
	}

	float DistanceToTarget = ControllingPawn->GetDistanceTo(Target);
	float AttackRangeWithRadius = AIPawn->GetAIAttackRange();
	bResult = (DistanceToTarget <= AttackRangeWithRadius);
	return bResult;
}

BTDecorator_AttackInRange.cpp

// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "BehaviorTree/BTTaskNode.h"
#include "BTTask_Attack.generated.h"

/**
 *
 */
UCLASS()
class ARENABATTLE_API UBTTask_Attack : public UBTTaskNode
{
	GENERATED_BODY()

public:
	UBTTask_Attack();

	virtual EBTNodeResult::Type ExecuteTask(UBehaviorTreeComponent& OwnerComp, uint8* NodeMemory) override;
};

BTTask_Attack.h

// Fill out your copyright notice in the Description page of Project Settings.


#include "AI/BTTask_Attack.h"
#include "AIController.h"
#include "Interface/ABCharacterAIInterface.h"

UBTTask_Attack::UBTTask_Attack()
{
}

EBTNodeResult::Type UBTTask_Attack::ExecuteTask(UBehaviorTreeComponent& OwnerComp, uint8* NodeMemory)
{
	EBTNodeResult::Type Result = Super::ExecuteTask(OwnerComp, NodeMemory);

	APawn* ControllingPawn = Cast<APawn>(OwnerComp.GetAIOwner()->GetPawn());
	if (nullptr == ControllingPawn)
	{
		return EBTNodeResult::Failed;
	}

	IABCharacterAIInterface* AIPawn = Cast<IABCharacterAIInterface>(ControllingPawn);
	if (nullptr == AIPawn)
	{
		return EBTNodeResult::Failed;
	}

	FAICharacterAttackFinished OnAttackFinished;
	OnAttackFinished.BindLambda(
		[&]()
		{
			FinishLatentTask(OwnerComp, EBTNodeResult::Succeeded);
		}
	);

	AIPawn->SetAIAttackDelegate(OnAttackFinished);
	AIPawn->AttackByAI();
	return EBTNodeResult::InProgress;
}

BTTask_Attack.cpp

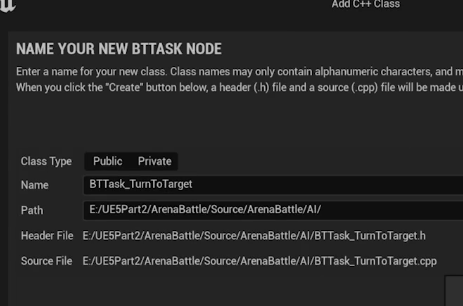

BTTask를 상속받은 BTTask_TurnToTarget 노드 생성

// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "BehaviorTree/BTTaskNode.h"
#include "BTTask_TurnToTarget.generated.h"

/**
 *
 */
UCLASS()
class ARENABATTLE_API UBTTask_TurnToTarget : public UBTTaskNode
{
	GENERATED_BODY()

public:
	UBTTask_TurnToTarget();

	virtual EBTNodeResult::Type ExecuteTask(UBehaviorTreeComponent& OwnerComp, uint8* NodeMemory) override;
};

BTTask_TurnToTarget.h

// Fill out your copyright notice in the Description page of Project Settings.


#include "AI/BTTask_TurnToTarget.h"
#include "ABAI.h"
#include "AIController.h"
#include "BehaviorTree/BlackboardComponent.h"
#include "Interface/ABCharacterAIInterface.h"

UBTTask_TurnToTarget::UBTTask_TurnToTarget()
{
	NodeName = TEXT("Turn");
}

EBTNodeResult::Type UBTTask_TurnToTarget::ExecuteTask(UBehaviorTreeComponent& OwnerComp, uint8* NodeMemory)
{
	EBTNodeResult::Type Result = Super::ExecuteTask(OwnerComp, NodeMemory);

	APawn* ControllingPawn = Cast<APawn>(OwnerComp.GetAIOwner()->GetPawn());
	if (nullptr == ControllingPawn)
	{
		return EBTNodeResult::Failed;
	}

	APawn* TargetPawn = Cast<APawn>(OwnerComp.GetBlackboardComponent()->GetValueAsObject(BBKEY_TARGET));
	if (nullptr == TargetPawn)
	{
		return EBTNodeResult::Failed;
	}

	IABCharacterAIInterface* AIPawn = Cast<IABCharacterAIInterface>(ControllingPawn);
	if (nullptr == AIPawn)
	{
		return EBTNodeResult::Failed;
	}

	float TurnSpeed = AIPawn->GetAITurnSpeed();
	FVector LookVector = TargetPawn->GetActorLocation() - ControllingPawn->GetActorLocation();
	LookVector.Z = 0.0f;
	FRotator TargetRot = FRotationMatrix::MakeFromX(LookVector).Rotator();
	ControllingPawn->SetActorRotation(FMath::RInterpTo(ControllingPawn->GetActorRotation(), TargetRot, GetWorld()->GetDeltaSeconds(), TurnSpeed));

	return EBTNodeResult::Succeeded;
}

BTTask_TurnToTarget.cpp

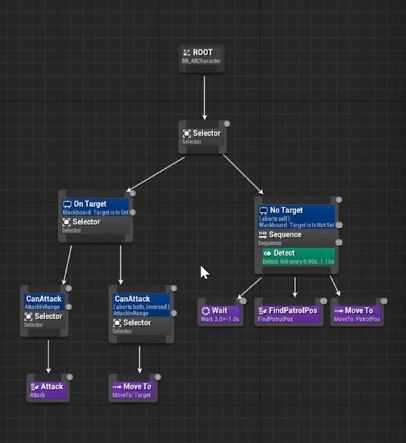

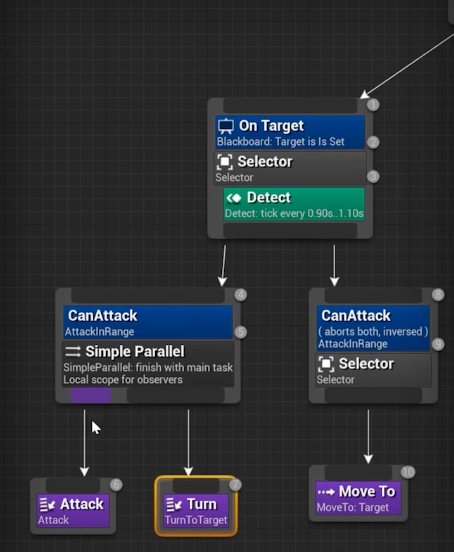

완성된 행동트리

https://www.inflearn.com/course/%EC%9D%B4%EB%93%9D%EC%9A%B0-%EC%96%B8%EB%A6%AC%EC%96%BC-%ED%94%84%EB%A1%9C%EA%B7%B8%EB%9E%98%EB%B0%8D-part-2/dashboard

이득우의 언리얼 프로그래밍 Part2 - 언리얼 게임 프레임웍의 이해 강의 | 이득우 - 인프런

이득우 | 대기업 현업자들이 수강하는 언리얼 C++ 프로그래밍 전문 과정입니다. 언리얼 C++ 프로그래밍을 사용해 핵&슬래시 로그라이크 게임 예제를 처음부터 끝까지 체계적으로 제작하는 방법을

www.inflearn.com

저작자표시 비영리 변경금지 (새창열림)

'게임 개발 > 언리얼 5' 카테고리의 다른 글

언리얼 5 - 게임 플로우 다듬기 (0)	2024.12.19
언리얼 5 - 헤드업디스플레이의 구현 (0)	2024.12.18
언리얼5 - 행동트리 모델의 이해 (1)	2024.12.15
언리얼 5 - 게임 데이터 관리 (1)	2024.12.12
언리얼 5 - 무한맵의 제작 (0)	2024.12.11

현재글언리얼 5 - 행동트리 모델의 구현

잡동사니

이제 할 일을 하자.

charactercontrol, worldsetting, TArray, 코딩스탠다드, 티스토리챌린지, thirdperson, 언리얼5, 언리얼, visibilitycollision, controlrig, 언리얼오브젝트, 오블완, 언씬, controlrotation, 유니티, 탐욕알고리즘, 연속공격, 언리얼빌드, 리플렉션, 블랜드스페이스,

Today :
Yesterday :

일	월	화	수	목	금	토
				1	2	3
4	5	6	7	8	9	10
11	12	13	14	15	16	17
18	19	20	21	22	23	24
25	26	27	28	29	30	31

내 블로그 - 관리자 홈 전환	`Q` `Q`
새 글 쓰기	`W` `W`

글 수정 (권한 있는 경우)	`E` `E`
댓글 영역으로 이동	`C` `C`

이 페이지의 URL 복사	`S` `S`
맨 위로 이동	`T` `T`
티스토리 홈 이동	`H` `H`
단축키 안내	`Shift` + `/` `⇧` + `/`

잡동사니
