언리얼 5 - 게임 플로우 다듬기

게임 구성 요소의 정리

게임 구성 요소의 분류

세 개의 레이어를 기준으로 게임을 구성하는 다양한 기능의 구현





게임 플로우를 위해 보강할 내용

죽었을 때 NPC와 플레이어의 처리

이동 속도의 적용

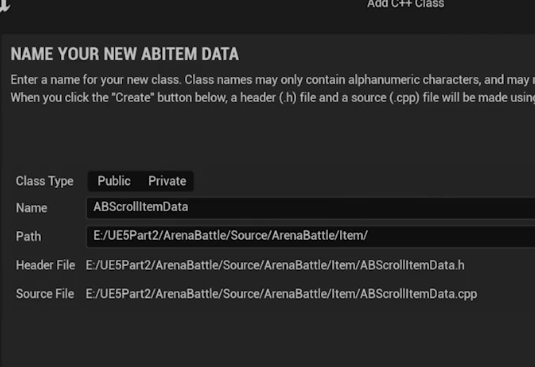

포션/스크롤 아이템의 추가 구현과 캐릭터의 적용

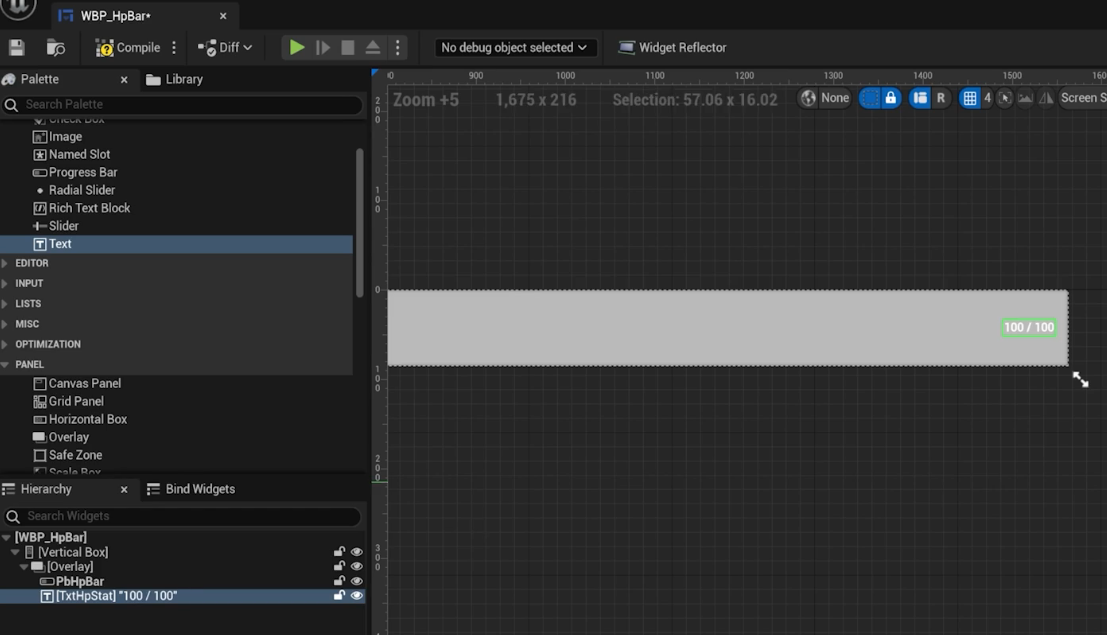

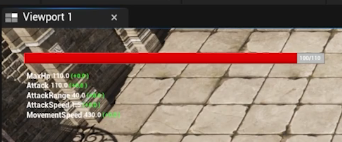

스탯 기능 및 UI 기능의 보강



---

캐릭터 관련 보완사항 수정

// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Character/ABCharacterBase.h"
#include "Engine/StreamableManager.h"
#include "Interface/ABCharacterAIInterface.h"
#include "ABCharacterNonPlayer.generated.h"

/**
 *
 */
UCLASS(config=ArenaBattle)
class ARENABATTLE_API AABCharacterNonPlayer : public AABCharacterBase, public IABCharacterAIInterface
{
	GENERATED_BODY()

public:
	AABCharacterNonPlayer();

protected:
	virtual void PostInitializeComponents() override;

protected:
	void SetDead() override;
	void NPCMeshLoadCompleted();

	UPROPERTY(config)
	TArray<FSoftObjectPath> NPCMeshes;

	TSharedPtr<FStreamableHandle> NPCMeshHandle;

// AI Section
protected:
	virtual float GetAIPatrolRadius() override;
	virtual float GetAIDetectRange() override;
	virtual float GetAIAttackRange() override;
	virtual float GetAITurnSpeed() override;

	virtual void SetAIAttackDelegate(const FAICharacterAttackFinished& InOnAttackFinished) override;
	virtual void AttackByAI() override;

	FAICharacterAttackFinished OnAttackFinished;

	virtual void NotifyComboActionEnd() override;
};

ABCharacterNonPlayer.h

// Fill out your copyright notice in the Description page of Project Settings.


#include "Character/ABCharacterNonPlayer.h"
#include "Engine/AssetManager.h"
#include "AI/ABAIController.h"
#include "CharacterStat/ABCharacterStatComponent.h"

AABCharacterNonPlayer::AABCharacterNonPlayer()
{
	GetMesh()->SetHiddenInGame(true);

	AIControllerClass = AABAIController::StaticClass();
	AutoPossessAI = EAutoPossessAI::PlacedInWorldOrSpawned;
}

void AABCharacterNonPlayer::PostInitializeComponents()
{
	Super::PostInitializeComponents();

	ensure(NPCMeshes.Num() > 0);
	int32 RandIndex = FMath::RandRange(0, NPCMeshes.Num() - 1);
	NPCMeshHandle = UAssetManager::Get().GetStreamableManager().RequestAsyncLoad(NPCMeshes[RandIndex], FStreamableDelegate::CreateUObject(this, &AABCharacterNonPlayer::NPCMeshLoadCompleted));
}

void AABCharacterNonPlayer::SetDead()
{
	Super::SetDead();

	AABAIController* ABAIController = Cast<AABAIController>(GetController());
	if (ABAIController)
	{
		ABAIController->StopAI();
	}

	FTimerHandle DeadTimerHandle;
	GetWorld()->GetTimerManager().SetTimer(DeadTimerHandle, FTimerDelegate::CreateLambda(
		[&]()
		{
			Destroy();
		}
	), DeadEventDelayTime, false);
}

void AABCharacterNonPlayer::NPCMeshLoadCompleted()
{
	if (NPCMeshHandle.IsValid())
	{
		USkeletalMesh* NPCMesh = Cast<USkeletalMesh>(NPCMeshHandle->GetLoadedAsset());
		if (NPCMesh)
		{
			GetMesh()->SetSkeletalMesh(NPCMesh);
			GetMesh()->SetHiddenInGame(false);
		}
	}

	NPCMeshHandle->ReleaseHandle();
}

float AABCharacterNonPlayer::GetAIPatrolRadius()
{
	return 800.0f;
}

float AABCharacterNonPlayer::GetAIDetectRange()
{
	return 400.0f;
}

float AABCharacterNonPlayer::GetAIAttackRange()
{
	return Stat->GetTotalStat().AttackRange + Stat->GetAttackRadius() * 2;
}

float AABCharacterNonPlayer::GetAITurnSpeed()
{
	return 2.0f;
}

void AABCharacterNonPlayer::SetAIAttackDelegate(const FAICharacterAttackFinished& InOnAttackFinished)
{
	OnAttackFinished = InOnAttackFinished;
}

void AABCharacterNonPlayer::AttackByAI()
{
	ProcessComboCommand();
}

void AABCharacterNonPlayer::NotifyComboActionEnd()
{
	Super::NotifyComboActionEnd();
	OnAttackFinished.ExecuteIfBound();
}

ABCharacterNonPlayer.cpp

// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Character/ABCharacterBase.h"
#include "InputActionValue.h"
#include "Interface/ABCharacterHUDInterface.h"
#include "ABCharacterPlayer.generated.h"

/**
 *
 */
UCLASS()
class ARENABATTLE_API AABCharacterPlayer : public AABCharacterBase, public IABCharacterHUDInterface
{
	GENERATED_BODY()

public:
	AABCharacterPlayer();

protected:
	virtual void BeginPlay() override;
	virtual void SetDead() override;

public:
	virtual void SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent) override;

// Character Control Section
protected:
	void ChangeCharacterControl();
	void SetCharacterControl(ECharacterControlType NewCharacterControlType);
	virtual void SetCharacterControlData(const class UABCharacterControlData* CharacterControlData) override;

// Camera Section
protected:
	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = Camera, Meta = (AllowPrivateAccess = "true"))
	TObjectPtr<class USpringArmComponent> CameraBoom;

	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = Camera, Meta = (AllowPrivateAccess = "true"))
	TObjectPtr<class UCameraComponent> FollowCamera;

// Input Section
protected:
	UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Input, Meta = (AllowPrivateAccess = "true"))
	TObjectPtr<class UInputAction> JumpAction;

	UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Input, Meta = (AllowPrivateAccess = "true"))
	TObjectPtr<class UInputAction> ChangeControlAction;

	UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Input, Meta = (AllowPrivateAccess = "true"))
	TObjectPtr<class UInputAction> ShoulderMoveAction;

	UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Input, Meta = (AllowPrivateAccess = "true"))
	TObjectPtr<class UInputAction> ShoulderLookAction;

	UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Input, Meta = (AllowPrivateAccess = "true"))
	TObjectPtr<class UInputAction> QuaterMoveAction;

	UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Input, Meta = (AllowPrivateAccess = "true"))
	TObjectPtr<class UInputAction> AttackAction;

	void ShoulderMove(const FInputActionValue& Value);
	void ShoulderLook(const FInputActionValue& Value);

	void QuaterMove(const FInputActionValue& Value);

	ECharacterControlType CurrentCharacterControlType;

	void Attack();

// UI Section
protected:
	virtual void SetupHUDWidget(class UABHUDWidget* InHUDWidget) override;
};

ABCharacterPlayer.h

// Fill out your copyright notice in the Description page of Project Settings.


#include "Character/ABCharacterPlayer.h"
#include "Camera/CameraComponent.h"
#include "GameFramework/SpringArmComponent.h"
#include "InputMappingContext.h"
#include "EnhancedInputComponent.h"
#include "EnhancedInputSubsystems.h"
#include "ABCharacterControlData.h"
#include "UI/ABHUDWidget.h"
#include "CharacterStat/ABCharacterStatComponent.h"

AABCharacterPlayer::AABCharacterPlayer()
{
	// Camera
	CameraBoom = CreateDefaultSubobject<USpringArmComponent>(TEXT("CameraBoom"));
	CameraBoom->SetupAttachment(RootComponent);
	CameraBoom->TargetArmLength = 400.0f;
	CameraBoom->bUsePawnControlRotation = true;

	FollowCamera = CreateDefaultSubobject<UCameraComponent>(TEXT("FollowCamera"));
	FollowCamera->SetupAttachment(CameraBoom, USpringArmComponent::SocketName);
	FollowCamera->bUsePawnControlRotation = false;

	// Input
	static ConstructorHelpers::FObjectFinder<UInputAction> InputActionJumpRef(TEXT("/Script/EnhancedInput.InputAction'/Game/ArenaBattle/Input/Actions/IA_Jump.IA_Jump'"));
	if (nullptr != InputActionJumpRef.Object)
	{
		JumpAction = InputActionJumpRef.Object;
	}

	static ConstructorHelpers::FObjectFinder<UInputAction> InputChangeActionControlRef(TEXT("/Script/EnhancedInput.InputAction'/Game/ArenaBattle/Input/Actions/IA_ChangeControl.IA_ChangeControl'"));
	if (nullptr != InputChangeActionControlRef.Object)
	{
		ChangeControlAction = InputChangeActionControlRef.Object;
	}

	static ConstructorHelpers::FObjectFinder<UInputAction> InputActionShoulderMoveRef(TEXT("/Script/EnhancedInput.InputAction'/Game/ArenaBattle/Input/Actions/IA_ShoulderMove.IA_ShoulderMove'"));
	if (nullptr != InputActionShoulderMoveRef.Object)
	{
		ShoulderMoveAction = InputActionShoulderMoveRef.Object;
	}

	static ConstructorHelpers::FObjectFinder<UInputAction> InputActionShoulderLookRef(TEXT("/Script/EnhancedInput.InputAction'/Game/ArenaBattle/Input/Actions/IA_ShoulderLook.IA_ShoulderLook'"));
	if (nullptr != InputActionShoulderLookRef.Object)
	{
		ShoulderLookAction = InputActionShoulderLookRef.Object;
	}

	static ConstructorHelpers::FObjectFinder<UInputAction> InputActionQuaterMoveRef(TEXT("/Script/EnhancedInput.InputAction'/Game/ArenaBattle/Input/Actions/IA_QuaterMove.IA_QuaterMove'"));
	if (nullptr != InputActionQuaterMoveRef.Object)
	{
		QuaterMoveAction = InputActionQuaterMoveRef.Object;
	}

	static ConstructorHelpers::FObjectFinder<UInputAction> InputActionAttackRef(TEXT("/Script/EnhancedInput.InputAction'/Game/ArenaBattle/Input/Actions/IA_Attack.IA_Attack'"));
	if (nullptr != InputActionAttackRef.Object)
	{
		AttackAction = InputActionAttackRef.Object;
	}

	CurrentCharacterControlType = ECharacterControlType::Quater;
}

void AABCharacterPlayer::BeginPlay()
{
	Super::BeginPlay();

	APlayerController* PlayerController = Cast<APlayerController>(GetController());
	if (PlayerController)
	{
		EnableInput(PlayerController);
	}

	SetCharacterControl(CurrentCharacterControlType);
}

void AABCharacterPlayer::SetDead()
{
	Super::SetDead();

	APlayerController* PlayerController = Cast<APlayerController>(GetController());
	if (PlayerController)
	{
		DisableInput(PlayerController);
	}
}

void AABCharacterPlayer::SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent)
{
	Super::SetupPlayerInputComponent(PlayerInputComponent);

	UEnhancedInputComponent* EnhancedInputComponent = CastChecked<UEnhancedInputComponent>(PlayerInputComponent);

	EnhancedInputComponent->BindAction(JumpAction, ETriggerEvent::Triggered, this, &ACharacter::Jump);
	EnhancedInputComponent->BindAction(JumpAction, ETriggerEvent::Completed, this, &ACharacter::StopJumping);
	EnhancedInputComponent->BindAction(ChangeControlAction, ETriggerEvent::Triggered, this, &AABCharacterPlayer::ChangeCharacterControl);
	EnhancedInputComponent->BindAction(ShoulderMoveAction, ETriggerEvent::Triggered, this, &AABCharacterPlayer::ShoulderMove);
	EnhancedInputComponent->BindAction(ShoulderLookAction, ETriggerEvent::Triggered, this, &AABCharacterPlayer::ShoulderLook);
	EnhancedInputComponent->BindAction(QuaterMoveAction, ETriggerEvent::Triggered, this, &AABCharacterPlayer::QuaterMove);
	EnhancedInputComponent->BindAction(AttackAction, ETriggerEvent::Triggered, this, &AABCharacterPlayer::Attack);
}

void AABCharacterPlayer::ChangeCharacterControl()
{
	if (CurrentCharacterControlType == ECharacterControlType::Quater)
	{
		SetCharacterControl(ECharacterControlType::Shoulder);
	}
	else if (CurrentCharacterControlType == ECharacterControlType::Shoulder)
	{
		SetCharacterControl(ECharacterControlType::Quater);
	}
}

void AABCharacterPlayer::SetCharacterControl(ECharacterControlType NewCharacterControlType)
{
	UABCharacterControlData* NewCharacterControl = CharacterControlManager[NewCharacterControlType];
	check(NewCharacterControl);

	SetCharacterControlData(NewCharacterControl);

	APlayerController* PlayerController = CastChecked<APlayerController>(GetController());
	if (UEnhancedInputLocalPlayerSubsystem* Subsystem = ULocalPlayer::GetSubsystem<UEnhancedInputLocalPlayerSubsystem>(PlayerController->GetLocalPlayer()))
	{
		Subsystem->ClearAllMappings();
		UInputMappingContext* NewMappingContext = NewCharacterControl->InputMappingContext;
		if (NewMappingContext)
		{
			Subsystem->AddMappingContext(NewMappingContext, 0);
		}
	}

	CurrentCharacterControlType = NewCharacterControlType;
}

void AABCharacterPlayer::SetCharacterControlData(const UABCharacterControlData* CharacterControlData)
{
	Super::SetCharacterControlData(CharacterControlData);

	CameraBoom->TargetArmLength = CharacterControlData->TargetArmLength;
	CameraBoom->SetRelativeRotation(CharacterControlData->RelativeRotation);
	CameraBoom->bUsePawnControlRotation = CharacterControlData->bUsePawnControlRotation;
	CameraBoom->bInheritPitch = CharacterControlData->bInheritPitch;
	CameraBoom->bInheritYaw = CharacterControlData->bInheritYaw;
	CameraBoom->bInheritRoll = CharacterControlData->bInheritRoll;
	CameraBoom->bDoCollisionTest = CharacterControlData->bDoCollisionTest;
}

void AABCharacterPlayer::ShoulderMove(const FInputActionValue& Value)
{
	FVector2D MovementVector = Value.Get<FVector2D>();

	const FRotator Rotation = Controller->GetControlRotation();
	const FRotator YawRotation(0, Rotation.Yaw, 0);

	const FVector ForwardDirection = FRotationMatrix(YawRotation).GetUnitAxis(EAxis::X);
	const FVector RightDirection = FRotationMatrix(YawRotation).GetUnitAxis(EAxis::Y);

	AddMovementInput(ForwardDirection, MovementVector.X);
	AddMovementInput(RightDirection, MovementVector.Y);
}

void AABCharacterPlayer::ShoulderLook(const FInputActionValue& Value)
{
	FVector2D LookAxisVector = Value.Get<FVector2D>();

	AddControllerYawInput(LookAxisVector.X);
	AddControllerPitchInput(LookAxisVector.Y);
}

void AABCharacterPlayer::QuaterMove(const FInputActionValue& Value)
{
	FVector2D MovementVector = Value.Get<FVector2D>();

	float InputSizeSquared = MovementVector.SquaredLength();
	float MovementVectorSize = 1.0f;
	float MovementVectorSizeSquared = MovementVector.SquaredLength();
	if (MovementVectorSizeSquared > 1.0f)
	{
		MovementVector.Normalize();
		MovementVectorSizeSquared = 1.0f;
	}
	else
	{
		MovementVectorSize = FMath::Sqrt(MovementVectorSizeSquared);
	}

	FVector MoveDirection = FVector(MovementVector.X, MovementVector.Y, 0.0f);
	GetController()->SetControlRotation(FRotationMatrix::MakeFromX(MoveDirection).Rotator());
	AddMovementInput(MoveDirection, MovementVectorSize);
}

void AABCharacterPlayer::Attack()
{
	ProcessComboCommand();
}

void AABCharacterPlayer::SetupHUDWidget(UABHUDWidget* InHUDWidget)
{
	if (InHUDWidget)
	{
		InHUDWidget->UpdateStat(Stat->GetBaseStat(), Stat->GetModifierStat());
		InHUDWidget->UpdateHpBar(Stat->GetCurrentHp());

		Stat->OnStatChanged.AddUObject(InHUDWidget, &UABHUDWidget::UpdateStat);
		Stat->OnHpChanged.AddUObject(InHUDWidget, &UABHUDWidget::UpdateHpBar);
	}
}

ABCharacterPlayer.cpp



// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Components/ActorComponent.h"
#include "GameData/ABCharacterStat.h"
#include "ABCharacterStatComponent.generated.h"

DECLARE_MULTICAST_DELEGATE(FOnHpZeroDelegate);
DECLARE_MULTICAST_DELEGATE_OneParam(FOnHpChangedDelegate, float /*CurrentHp*/);
DECLARE_MULTICAST_DELEGATE_TwoParams(FOnStatChangedDelegate, const FABCharacterStat& /*BaseStat*/, const FABCharacterStat& /*ModifierStat*/);

UCLASS( ClassGroup=(Custom), meta=(BlueprintSpawnableComponent) )
class ARENABATTLE_API UABCharacterStatComponent : public UActorComponent
{
	GENERATED_BODY()

public:
	// Sets default values for this component's properties
	UABCharacterStatComponent();

protected:
	virtual void InitializeComponent() override;

public:
	FOnHpZeroDelegate OnHpZero;
	FOnHpChangedDelegate OnHpChanged;
	FOnStatChangedDelegate OnStatChanged;

	void SetLevelStat(int32 InNewLevel);
	FORCEINLINE float GetCurrentLevel() const { return CurrentLevel; }
	FORCEINLINE void AddBaseStat(const FABCharacterStat& InAddBaseStat) { BaseStat = BaseStat + InAddBaseStat; OnStatChanged.Broadcast(GetBaseStat(), GetModifierStat()); }
	FORCEINLINE void SetBaseStat(const FABCharacterStat& InBaseStat) { BaseStat = InBaseStat; OnStatChanged.Broadcast(GetBaseStat(), GetModifierStat()); }
	FORCEINLINE void SetModifierStat(const FABCharacterStat& InModifierStat) { ModifierStat = InModifierStat; OnStatChanged.Broadcast(GetBaseStat(), GetModifierStat()); }

	FORCEINLINE const FABCharacterStat& GetBaseStat() const { return BaseStat; }
	FORCEINLINE const FABCharacterStat& GetModifierStat() const { return ModifierStat; }
	FORCEINLINE FABCharacterStat GetTotalStat() const { return BaseStat + ModifierStat; }
	FORCEINLINE float GetCurrentHp() const { return CurrentHp; }
	FORCEINLINE void HealHp(float InHealAmount) { CurrentHp = FMath::Clamp(CurrentHp + InHealAmount, 0, GetTotalStat().MaxHp); OnHpChanged.Broadcast(CurrentHp); }
	FORCEINLINE float GetAttackRadius() const { return AttackRadius; }
	float ApplyDamage(float InDamage);

protected:
	void SetHp(float NewHp);

	UPROPERTY(Transient, VisibleInstanceOnly, Category = Stat)
	float CurrentHp;

	UPROPERTY(Transient, VisibleInstanceOnly, Category = Stat)
	float CurrentLevel;

	UPROPERTY(VisibleInstanceOnly, Category = Stat, Meta = (AllowPrivateAccess = "true"))
	float AttackRadius;

	UPROPERTY(Transient, VisibleInstanceOnly, Category = Stat, Meta = (AllowPrivateAccess = "true"))
	FABCharacterStat BaseStat;

	UPROPERTY(Transient, VisibleInstanceOnly, Category = Stat, Meta = (AllowPrivateAccess = "true"))
	FABCharacterStat ModifierStat;
};

ABCharacterStatComponent.h



// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Character.h"
#include "Interface/ABAnimationAttackInterface.h"
#include "Interface/ABCharacterWidgetInterface.h"
#include "Interface/ABCharacterItemInterface.h"
#include "GameData/ABCharacterStat.h"
#include "ABCharacterBase.generated.h"

DECLARE_LOG_CATEGORY_EXTERN(LogABCharacter, Log, All);

UENUM()
enum class ECharacterControlType : uint8
{
	Shoulder,
	Quater
};

DECLARE_DELEGATE_OneParam(FOnTakeItemDelegate, class UABItemData* /*InItemData*/);
USTRUCT(BlueprintType)
struct FTakeItemDelegateWrapper
{
	GENERATED_BODY()
	FTakeItemDelegateWrapper() {}
	FTakeItemDelegateWrapper(const FOnTakeItemDelegate& InItemDelegate) : ItemDelegate(InItemDelegate) {}
	FOnTakeItemDelegate ItemDelegate;
};

UCLASS()
class ARENABATTLE_API AABCharacterBase : public ACharacter, public IABAnimationAttackInterface, public IABCharacterWidgetInterface, public IABCharacterItemInterface
{
	GENERATED_BODY()

public:
	// Sets default values for this character's properties
	AABCharacterBase();

	virtual void PostInitializeComponents() override;

protected:
	virtual void SetCharacterControlData(const class UABCharacterControlData* CharacterControlData);

	UPROPERTY(EditAnywhere, Category = CharacterControl, Meta = (AllowPrivateAccess = "true"))
	TMap<ECharacterControlType, class UABCharacterControlData*> CharacterControlManager;

// Combo Action Section
protected:

	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = Animation)
	TObjectPtr<class UAnimMontage> ComboActionMontage;

	UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Attack, Meta = (AllowPrivateAccess = "true"))
	TObjectPtr<class UABComboActionData> ComboActionData;

	void ProcessComboCommand();

	void ComboActionBegin();
	void ComboActionEnd(class UAnimMontage* TargetMontage, bool IsProperlyEnded);
	virtual void NotifyComboActionEnd();
	void SetComboCheckTimer();
	void ComboCheck();

	int32 CurrentCombo = 0;
	FTimerHandle ComboTimerHandle;
	bool HasNextComboCommand = false;

// Attack Hit Section
protected:
	virtual void AttackHitCheck() override;
	virtual float TakeDamage(float DamageAmount, struct FDamageEvent const& DamageEvent, class AController* EventInstigator, AActor* DamageCauser) override;

// Dead Section
protected:
	UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Stat, Meta = (AllowPrivateAccess = "true"))
	TObjectPtr<class UAnimMontage> DeadMontage;

	virtual void SetDead();
	void PlayDeadAnimation();

	float DeadEventDelayTime = 5.0f;

// Stat Section
protected:
	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = Stat, Meta = (AllowPrivateAccess = "true"))
	TObjectPtr<class UABCharacterStatComponent> Stat;

// UI Widget Section
protected:
	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = Widget, Meta = (AllowPrivateAccess = "true"))
	TObjectPtr<class UWidgetComponent> HpBar;

	virtual void SetupCharacterWidget(class UABUserWidget* InUserWidget) override;

// Item Section
protected:
	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = Equipment, Meta = (AllowPrivateAccess = "true"))
	TObjectPtr<class USkeletalMeshComponent> Weapon;

	UPROPERTY()
	TArray<FTakeItemDelegateWrapper> TakeItemActions;

	virtual void TakeItem(class UABItemData* InItemData) override;
	virtual void DrinkPotion(class UABItemData* InItemData);
	virtual void EquipWeapon(class UABItemData* InItemData);
	virtual void ReadScroll(class UABItemData* InItemData);

// Stat Section
public:
	int32 GetLevel();
	void SetLevel(int32 InNewLevel);
	void ApplyStat(const FABCharacterStat& BaseStat, const FABCharacterStat& ModifierStat);
};

ABCharacterBase.h

// Fill out your copyright notice in the Description page of Project Settings.


#include "Character/ABCharacterBase.h"
#include "Components/CapsuleComponent.h"
#include "GameFramework/CharacterMovementComponent.h"
#include "ABCharacterControlData.h"
#include "Animation/AnimMontage.h"
#include "ABComboActionData.h"
#include "Physics/ABCollision.h"
#include "Engine/DamageEvents.h"
#include "CharacterStat/ABCharacterStatComponent.h"
#include "UI/ABWidgetComponent.h"
#include "UI/ABHpBarWidget.h"
#include "Item/ABItems.h"

DEFINE_LOG_CATEGORY(LogABCharacter);

// Sets default values
AABCharacterBase::AABCharacterBase()
{
	// Pawn
	bUseControllerRotationPitch = false;
	bUseControllerRotationYaw = false;
	bUseControllerRotationRoll = false;

	// Capsule
	GetCapsuleComponent()->InitCapsuleSize(42.f, 96.0f);
	GetCapsuleComponent()->SetCollisionProfileName(CPROFILE_ABCAPSULE);

	// Movement
	GetCharacterMovement()->bOrientRotationToMovement = true;
	GetCharacterMovement()->RotationRate = FRotator(0.0f, 500.0f, 0.0f);
	GetCharacterMovement()->JumpZVelocity = 700.f;
	GetCharacterMovement()->AirControl = 0.35f;
	GetCharacterMovement()->MaxWalkSpeed = 500.f;
	GetCharacterMovement()->MinAnalogWalkSpeed = 20.f;
	GetCharacterMovement()->BrakingDecelerationWalking = 2000.f;

	// Mesh
	GetMesh()->SetRelativeLocationAndRotation(FVector(0.0f, 0.0f, -100.0f), FRotator(0.0f, -90.0f, 0.0f));
	GetMesh()->SetAnimationMode(EAnimationMode::AnimationBlueprint);
	GetMesh()->SetCollisionProfileName(TEXT("NoCollision"));

	static ConstructorHelpers::FObjectFinder<USkeletalMesh> CharacterMeshRef(TEXT("/Script/Engine.SkeletalMesh'/Game/InfinityBladeWarriors/Character/CompleteCharacters/SK_CharM_Cardboard.SK_CharM_Cardboard'"));
	if (CharacterMeshRef.Object)
	{
		GetMesh()->SetSkeletalMesh(CharacterMeshRef.Object);
	}

	static ConstructorHelpers::FClassFinder<UAnimInstance> AnimInstanceClassRef(TEXT("/Game/ArenaBattle/Animation/ABP_ABCharacter.ABP_ABCharacter_C"));
	if (AnimInstanceClassRef.Class)
	{
		GetMesh()->SetAnimInstanceClass(AnimInstanceClassRef.Class);
	}

	static ConstructorHelpers::FObjectFinder<UABCharacterControlData> ShoulderDataRef(TEXT("/Script/ArenaBattle.ABCharacterControlData'/Game/ArenaBattle/CharacterControl/ABC_Shoulder.ABC_Shoulder'"));
	if (ShoulderDataRef.Object)
	{
		CharacterControlManager.Add(ECharacterControlType::Shoulder, ShoulderDataRef.Object);
	}

	static ConstructorHelpers::FObjectFinder<UABCharacterControlData> QuaterDataRef(TEXT("/Script/ArenaBattle.ABCharacterControlData'/Game/ArenaBattle/CharacterControl/ABC_Quater.ABC_Quater'"));
	if (QuaterDataRef.Object)
	{
		CharacterControlManager.Add(ECharacterControlType::Quater, QuaterDataRef.Object);
	}

	static ConstructorHelpers::FObjectFinder<UAnimMontage> ComboActionMontageRef(TEXT("/Script/Engine.AnimMontage'/Game/ArenaBattle/Animation/AM_ComboAttack.AM_ComboAttack'"));
	if (ComboActionMontageRef.Object)
	{
		ComboActionMontage = ComboActionMontageRef.Object;
	}

	static ConstructorHelpers::FObjectFinder<UABComboActionData> ComboActionDataRef(TEXT("/Script/ArenaBattle.ABComboActionData'/Game/ArenaBattle/CharacterAction/ABA_ComboAttack.ABA_ComboAttack'"));
	if (ComboActionDataRef.Object)
	{
		ComboActionData = ComboActionDataRef.Object;
	}

	static ConstructorHelpers::FObjectFinder<UAnimMontage> DeadMontageRef(TEXT("/Script/Engine.AnimMontage'/Game/ArenaBattle/Animation/AM_Dead.AM_Dead'"));
	if (DeadMontageRef.Object)
	{
		DeadMontage = DeadMontageRef.Object;
	}

	// Stat Component
	Stat = CreateDefaultSubobject<UABCharacterStatComponent>(TEXT("Stat"));

	// Widget Component
	HpBar = CreateDefaultSubobject<UABWidgetComponent>(TEXT("Widget"));
	HpBar->SetupAttachment(GetMesh());
	HpBar->SetRelativeLocation(FVector(0.0f, 0.0f, 180.0f));
	static ConstructorHelpers::FClassFinder<UUserWidget> HpBarWidgetRef(TEXT("/Game/ArenaBattle/UI/WBP_HpBar.WBP_HpBar_C"));
	if (HpBarWidgetRef.Class)
	{
		HpBar->SetWidgetClass(HpBarWidgetRef.Class);
		HpBar->SetWidgetSpace(EWidgetSpace::Screen);
		HpBar->SetDrawSize(FVector2D(150.0f, 15.0f));
		HpBar->SetCollisionEnabled(ECollisionEnabled::NoCollision);
	}

	// Item Actions
	TakeItemActions.Add(FTakeItemDelegateWrapper(FOnTakeItemDelegate::CreateUObject(this, &AABCharacterBase::EquipWeapon)));
	TakeItemActions.Add(FTakeItemDelegateWrapper(FOnTakeItemDelegate::CreateUObject(this, &AABCharacterBase::DrinkPotion)));
	TakeItemActions.Add(FTakeItemDelegateWrapper(FOnTakeItemDelegate::CreateUObject(this, &AABCharacterBase::ReadScroll)));

	// Weapon Component
	Weapon = CreateDefaultSubobject<USkeletalMeshComponent>(TEXT("Weapon"));
	Weapon->SetupAttachment(GetMesh(), TEXT("hand_rSocket"));
}

void AABCharacterBase::PostInitializeComponents()
{
	Super::PostInitializeComponents();

	Stat->OnHpZero.AddUObject(this, &AABCharacterBase::SetDead);
	Stat->OnStatChanged.AddUObject(this, &AABCharacterBase::ApplyStat);
}

void AABCharacterBase::SetCharacterControlData(const UABCharacterControlData* CharacterControlData)
{
	// Pawn
	bUseControllerRotationYaw = CharacterControlData->bUseControllerRotationYaw;

	// CharacterMovement
	GetCharacterMovement()->bOrientRotationToMovement = CharacterControlData->bOrientRotationToMovement;
	GetCharacterMovement()->bUseControllerDesiredRotation = CharacterControlData->bUseControllerDesiredRotation;
	GetCharacterMovement()->RotationRate = CharacterControlData->RotationRate;
}

void AABCharacterBase::ProcessComboCommand()
{
	if (CurrentCombo == 0)
	{
		ComboActionBegin();
		return;
	}

	if (!ComboTimerHandle.IsValid())
	{
		HasNextComboCommand = false;
	}
	else
	{
		HasNextComboCommand = true;
	}
}

void AABCharacterBase::ComboActionBegin()
{
	// Combo Status
	CurrentCombo = 1;

	// Movement Setting
	GetCharacterMovement()->SetMovementMode(EMovementMode::MOVE_None);

	// Animation Setting
	const float AttackSpeedRate = Stat->GetTotalStat().AttackSpeed;
	UAnimInstance* AnimInstance = GetMesh()->GetAnimInstance();
	AnimInstance->Montage_Play(ComboActionMontage, AttackSpeedRate);

	FOnMontageEnded EndDelegate;
	EndDelegate.BindUObject(this, &AABCharacterBase::ComboActionEnd);
	AnimInstance->Montage_SetEndDelegate(EndDelegate, ComboActionMontage);

	ComboTimerHandle.Invalidate();
	SetComboCheckTimer();
}

void AABCharacterBase::ComboActionEnd(UAnimMontage* TargetMontage, bool IsProperlyEnded)
{
	ensure(CurrentCombo != 0);
	CurrentCombo = 0;
	GetCharacterMovement()->SetMovementMode(EMovementMode::MOVE_Walking);

	NotifyComboActionEnd();
}

void AABCharacterBase::NotifyComboActionEnd()
{
}

void AABCharacterBase::SetComboCheckTimer()
{
	int32 ComboIndex = CurrentCombo - 1;
	ensure(ComboActionData->EffectiveFrameCount.IsValidIndex(ComboIndex));

	const float AttackSpeedRate = Stat->GetTotalStat().AttackSpeed;
	float ComboEffectiveTime = (ComboActionData->EffectiveFrameCount[ComboIndex] / ComboActionData->FrameRate) / AttackSpeedRate;
	if (ComboEffectiveTime > 0.0f)
	{
		GetWorld()->GetTimerManager().SetTimer(ComboTimerHandle, this, &AABCharacterBase::ComboCheck, ComboEffectiveTime, false);
	}
}

void AABCharacterBase::ComboCheck()
{
	ComboTimerHandle.Invalidate();
	if (HasNextComboCommand)
	{
		UAnimInstance* AnimInstance = GetMesh()->GetAnimInstance();

		CurrentCombo = FMath::Clamp(CurrentCombo + 1, 1, ComboActionData->MaxComboCount);
		FName NextSection = *FString::Printf(TEXT("%s%d"), *ComboActionData->MontageSectionNamePrefix, CurrentCombo);
		AnimInstance->Montage_JumpToSection(NextSection, ComboActionMontage);
		SetComboCheckTimer();
		HasNextComboCommand = false;
	}
}

void AABCharacterBase::AttackHitCheck()
{
	FHitResult OutHitResult;
	FCollisionQueryParams Params(SCENE_QUERY_STAT(Attack), false, this);

	const float AttackRange = Stat->GetTotalStat().AttackRange;
	const float AttackRadius = Stat->GetAttackRadius();
	const float AttackDamage = Stat->GetTotalStat().Attack;
	const FVector Start = GetActorLocation() + GetActorForwardVector() * GetCapsuleComponent()->GetScaledCapsuleRadius();
	const FVector End = Start + GetActorForwardVector() * AttackRange;

	bool HitDetected = GetWorld()->SweepSingleByChannel(OutHitResult, Start, End, FQuat::Identity, CCHANNEL_ABACTION, FCollisionShape::MakeSphere(AttackRadius), Params);
	if (HitDetected)
	{
		FDamageEvent DamageEvent;
		OutHitResult.GetActor()->TakeDamage(AttackDamage, DamageEvent, GetController(), this);
	}

#if ENABLE_DRAW_DEBUG

	FVector CapsuleOrigin = Start + (End - Start) * 0.5f;
	float CapsuleHalfHeight = AttackRange * 0.5f;
	FColor DrawColor = HitDetected ? FColor::Green : FColor::Red;

	DrawDebugCapsule(GetWorld(), CapsuleOrigin, CapsuleHalfHeight, AttackRadius, FRotationMatrix::MakeFromZ(GetActorForwardVector()).ToQuat(), DrawColor, false, 5.0f);

#endif
}

float AABCharacterBase::TakeDamage(float DamageAmount, FDamageEvent const& DamageEvent, AController* EventInstigator, AActor* DamageCauser)
{
	Super::TakeDamage(DamageAmount, DamageEvent, EventInstigator, DamageCauser);

	Stat->ApplyDamage(DamageAmount);

	return DamageAmount;
}

void AABCharacterBase::SetDead()
{
	GetCharacterMovement()->SetMovementMode(EMovementMode::MOVE_None);
	PlayDeadAnimation();
	SetActorEnableCollision(false);
	HpBar->SetHiddenInGame(true);
}

void AABCharacterBase::PlayDeadAnimation()
{
	UAnimInstance* AnimInstance = GetMesh()->GetAnimInstance();
	AnimInstance->StopAllMontages(0.0f);
	AnimInstance->Montage_Play(DeadMontage, 1.0f);
}

void AABCharacterBase::SetupCharacterWidget(UABUserWidget* InUserWidget)
{
	UABHpBarWidget* HpBarWidget = Cast<UABHpBarWidget>(InUserWidget);
	if (HpBarWidget)
	{
		HpBarWidget->UpdateStat(Stat->GetBaseStat(), Stat->GetModifierStat());
		HpBarWidget->UpdateHpBar(Stat->GetCurrentHp());
		Stat->OnHpChanged.AddUObject(HpBarWidget, &UABHpBarWidget::UpdateHpBar);
		Stat->OnStatChanged.AddUObject(HpBarWidget, &UABHpBarWidget::UpdateStat);
	}
}

void AABCharacterBase::TakeItem(UABItemData* InItemData)
{
	if (InItemData)
	{
		TakeItemActions[(uint8)InItemData->Type].ItemDelegate.ExecuteIfBound(InItemData);
	}
}

void AABCharacterBase::DrinkPotion(UABItemData* InItemData)
{
	UABPotionItemData* PotionItemData = Cast<UABPotionItemData>(InItemData);
	if (PotionItemData)
	{
		Stat->HealHp(PotionItemData->HealAmount);
	}
}

void AABCharacterBase::EquipWeapon(UABItemData* InItemData)
{
	UABWeaponItemData* WeaponItemData = Cast<UABWeaponItemData>(InItemData);
	if (WeaponItemData)
	{
		if (WeaponItemData->WeaponMesh.IsPending())
		{
			WeaponItemData->WeaponMesh.LoadSynchronous();
		}
		Weapon->SetSkeletalMesh(WeaponItemData->WeaponMesh.Get());
		Stat->SetModifierStat(WeaponItemData->ModifierStat);
	}
}

void AABCharacterBase::ReadScroll(UABItemData* InItemData)
{
	UABScrollItemData* ScrollItemData = Cast<UABScrollItemData>(InItemData);
	if (ScrollItemData)
	{
		Stat->AddBaseStat(ScrollItemData->BaseStat);
	}
}

int32 AABCharacterBase::GetLevel()
{
	return Stat->GetCurrentLevel();
}

void AABCharacterBase::SetLevel(int32 InNewLevel)
{
	Stat->SetLevelStat(InNewLevel);
}

void AABCharacterBase::ApplyStat(const FABCharacterStat& BaseStat, const FABCharacterStat& ModifierStat)
{
	float MovementSpeed = (BaseStat + ModifierStat).MovementSpeed;
	GetCharacterMovement()->MaxWalkSpeed = MovementSpeed;
}

ABCharacterBase.cpp



ABItemData를 상속받는 ABPotionItemData, ABScrollItemData 생성



// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Item/ABItemData.h"
#include "GameData/ABCharacterStat.h"
#include "ABWeaponItemData.generated.h"

/**
 *
 */
UCLASS()
class ARENABATTLE_API UABWeaponItemData : public UABItemData
{
	GENERATED_BODY()

public:
	UABWeaponItemData();

	FPrimaryAssetId GetPrimaryAssetId() const override
	{
		return FPrimaryAssetId("ABItemData", GetFName());
	}

public:
	UPROPERTY(EditAnywhere, Category = Weapon)
	TSoftObjectPtr<USkeletalMesh> WeaponMesh;

	UPROPERTY(EditAnywhere, Category = Stat)
	FABCharacterStat ModifierStat;
};

ABWeaponItemData.h



// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Item/ABItemData.h"
#include "GameData/ABCharacterStat.h"
#include "ABScrollItemData.generated.h"

/**
 *
 */
UCLASS()
class ARENABATTLE_API UABScrollItemData : public UABItemData
{
	GENERATED_BODY()

public:
	UABScrollItemData();

	FPrimaryAssetId GetPrimaryAssetId() const override
	{
		return FPrimaryAssetId("ABItemData", GetFName());
	}

public:
	UPROPERTY(EditAnywhere, Category = Stat)
	FABCharacterStat BaseStat;
};

ABScrollItemData.h



// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Item/ABItemData.h"
#include "ABPotionItemData.generated.h"

/**
 *
 */
UCLASS()
class ARENABATTLE_API UABPotionItemData : public UABItemData
{
	GENERATED_BODY()

public:
	UABPotionItemData();

	FPrimaryAssetId GetPrimaryAssetId() const override
	{
		return FPrimaryAssetId("ABItemData", GetFName());
	}

public:
	UPROPERTY(EditAnywhere, Category = Hp)
	float HealAmount;
};

ABPotionItemData.h

각 포션 생성, 각각 30, 100, 200, 500으로 값 설정



스크롤과 무기까지 추가



무기의 종류가 많아 ABItems라는 헤더파일을 따로 생성

#pragma once

#include "ABWeaponItemData.h"
#include "ABScrollItemData.h"
#include "ABPotionItemData.h"

ABItems.h

따로 include해줌



HpBar 위젯에 체력을 나타내는 Text를 추가



// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "ABUserWidget.h"
#include "GameData/ABCharacterStat.h"
#include "ABHpBarWidget.generated.h"

/**
 *
 */
UCLASS()
class ARENABATTLE_API UABHpBarWidget : public UABUserWidget
{
	GENERATED_BODY()

public:
	UABHpBarWidget(const FObjectInitializer& ObjectInitializer);

protected:
	virtual void NativeConstruct() override;

public:
	void UpdateStat(const FABCharacterStat& BaseStat, const FABCharacterStat& ModifierStat);
	void UpdateHpBar(float NewCurrentHp);
	FString GetHpStatText();

protected:
	UPROPERTY()
	TObjectPtr<class UProgressBar> HpProgressBar;

	UPROPERTY()
	TObjectPtr<class UTextBlock> HpStat;

	UPROPERTY()
	float CurrentHp;

	UPROPERTY()
	float MaxHp;
};

ABHpBarWidget.h

// Fill out your copyright notice in the Description page of Project Settings.


#include "UI/ABHpBarWidget.h"
#include "Components/ProgressBar.h"
#include "Components/TextBlock.h"
#include "Interface/ABCharacterWidgetInterface.h"

UABHpBarWidget::UABHpBarWidget(const FObjectInitializer& ObjectInitializer) : Super(ObjectInitializer)
{
	MaxHp = -1.0f;
}

void UABHpBarWidget::NativeConstruct()
{
	Super::NativeConstruct();

	HpProgressBar = Cast<UProgressBar>(GetWidgetFromName(TEXT("PbHpBar")));
	ensure(HpProgressBar);

	HpStat = Cast<UTextBlock>(GetWidgetFromName(TEXT("TxtHpStat")));
	ensure(HpStat);

	IABCharacterWidgetInterface* CharacterWidget = Cast<IABCharacterWidgetInterface>(OwningActor);
	if (CharacterWidget)
	{
		CharacterWidget->SetupCharacterWidget(this);
	}
}

void UABHpBarWidget::UpdateStat(const FABCharacterStat& BaseStat, const FABCharacterStat& ModifierStat)
{
	MaxHp = (BaseStat + ModifierStat).MaxHp;

	if (HpProgressBar)
	{
		HpProgressBar->SetPercent(CurrentHp / MaxHp);
	}

	if (HpStat)
	{
		HpStat->SetText(FText::FromString(GetHpStatText()));
	}
}

void UABHpBarWidget::UpdateHpBar(float NewCurrentHp)
{
	CurrentHp = NewCurrentHp;

	ensure(MaxHp > 0.0f);
	if (HpProgressBar)
	{
		HpProgressBar->SetPercent(CurrentHp / MaxHp);
	}

	if (HpStat)
	{
		HpStat->SetText(FText::FromString(GetHpStatText()));
	}
}

FString UABHpBarWidget::GetHpStatText()
{
	return FString::Printf(TEXT("%.0f/%0.f"), CurrentHp, MaxHp);
}

ABHpBarWidget.cpp



// Fill out your copyright notice in the Description page of Project Settings.


#include "UI/ABHUDWidget.h"
#include "Interface/ABCharacterHUDInterface.h"
#include "ABHpBarWidget.h"
#include "ABCharacterStatWidget.h"

UABHUDWidget::UABHUDWidget(const FObjectInitializer& ObjectInitializer) : Super(ObjectInitializer)
{
}

void UABHUDWidget::UpdateStat(const FABCharacterStat& BaseStat, const FABCharacterStat& ModifierStat)
{
	FABCharacterStat TotalStat = BaseStat + ModifierStat;
	HpBar->UpdateStat(BaseStat, ModifierStat);
	CharacterStat->UpdateStat(BaseStat, ModifierStat);
}

void UABHUDWidget::UpdateHpBar(float NewCurrentHp)
{
	HpBar->UpdateHpBar(NewCurrentHp);
}

void UABHUDWidget::NativeConstruct()
{
	Super::NativeConstruct();

	HpBar = Cast<UABHpBarWidget>(GetWidgetFromName(TEXT("WidgetHpBar")));
	ensure(HpBar);

	CharacterStat = Cast<UABCharacterStatWidget>(GetWidgetFromName(TEXT("WidgetCharacterStat")));
	ensure(CharacterStat);

	IABCharacterHUDInterface* HUDPawn = Cast<IABCharacterHUDInterface>(GetOwningPlayerPawn());
	if (HUDPawn)
	{
		HUDPawn->SetupHUDWidget(this);
	}

}

ABHUDWidget.cpp

캐릭터 스탯에 따라 UI 업데이트





---

https://www.inflearn.com/course/%EC%9D%B4%EB%93%9D%EC%9A%B0-%EC%96%B8%EB%A6%AC%EC%96%BC-%ED%94%84%EB%A1%9C%EA%B7%B8%EB%9E%98%EB%B0%8D-part-2/dashboard

이득우의 언리얼 프로그래밍 Part2 - 언리얼 게임 프레임웍의 이해 강의 | 이득우 - 인프런
